Product Details:
|
| Name: | 1 Inch ,25mm , Celebration Decorations Use Plc Hexagonal Wire Mesh Machine | Weight: | 4-5.7 T |
|---|---|---|---|
| Mesh Width: | 2500/3000/4000 | Motor: | 4.4kw*1+7.5kw*2 |
| Warranty: | 2 Years | Wire Diameter: | 0.45-1.1mm |
| Application: | For Hexagonal Wire Mesh | Mesh Size: | Can Be Customizable |
| Mesh Width: | Can Be Customizable | Control System: | PLC+touch Screen |
| Mesh Type: | Rolling Mesh | Material: | Iron Wire / Pvc Wire |
| Highlight: | 1inch Chicken Wire Mesh Making Machine,Multiscene Chicken Wire Mesh Making Machine,Anti Seismic Steel Wire Mesh Machine |
||
1 Inch ,25mm , Celebration Decorations Use Plc Hexagonal Wire Mesh Machine
Technical Parameters
| Type |
Mesh Size (mm) |
Mesh width (mm) |
Wire diameter (mm) |
Machine dimension(m) | Motor(kw) | Weight(T) | |||
|
HGTO-2500
|
16 | 2500/3000/4000 | 0.38-0.7 | (2.5-4.0)*1.7*1.6 | 3 | 4-5.7 | |||
| 21-22 | 0.40-0.7 | ||||||||
| 25 | 0.45-1.1 | ||||||||
| 30-32 | 0.50-1.2 | ||||||||
| 40-45 | 0.50-1.4 | ||||||||
| 55-57 | 0.6-2.0 | ||||||||
| 60-65 | 1.0-2.0 | ||||||||
| Remark: Can manufacture customized type | |||||||||
Usage of straight and reverse hexagonal wire mesh
(a) used for husbandry, for example, feeding chicken.
(b) used in petroleum, construction, farming, chemical industry, and pipes parcel wire mesh.
(c) used for fencing, residential and landscape protection, etc.
Our Advantages
1. International famous brand components:Best domestic
2. Servo motor to drive weaving process, more precise, adjustable speed, running fast, less noise.
3. Inching / Single-step control button, easy to operate.
4. Grid counter + alarm to stop machine (when wire/ mesh broken, or preset numbers into zero).
5. Automatically wind up mesh into rolls.
6. Tidy mesh with/ without reinforcement wire between any holes.
7. Automatically central lubrication system to reduce machine damages;
8. Can weave 2-4 scopes of the net with the same machine.
9. Auto-stop machine function when the wire is broken.
FAQ
Q: Where is your factory located?
A: Our factory is located in Ding zhou city ,Hebei provinc of China. The nearest airport is Beijing airport capital or Shijianzhuang airport .We can picky you up from shijianzhang city.
Q: How many years are your company engaged in the wire mesh machines?
A: More than 34 years. We have our own technology develop department and testing department.
Q: Can your company send your engineers to my country for machine installation, worker training?
A: Yes, our engineers went to more than 40 countries before. They are very experienced.
Q: What's the guarantee time for your machines?
A: Our guarantee time is 2 years since the machine was installed in your factory.
Q: Can you export and supply the customs clearance documents we need?
A: We have much experience of exporting. And we can supply ISO report etc, your customs clearance will be no problem

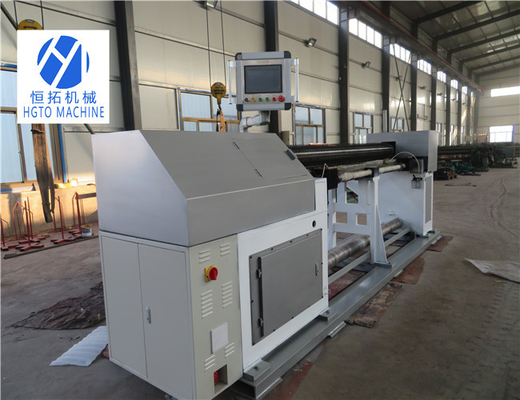

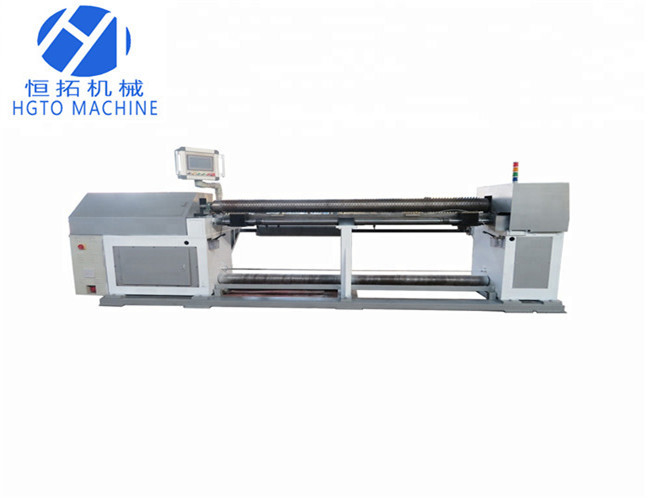

Machine Image:
Auxiliary equipment:
Finish Product:
