Product Details:
|
| Name: | Chain Link Fencing Machine | Material: | Printed |
|---|---|---|---|
| Motor: | Servo Motor | Finish Product: | Chain Link Fence Mesh In Rolls |
| Mesh Width: | Max.6000mm ( Customized ) | Machine Type: | Double Wire Spiral Chain Link Fence Making Machine |
| Voltage: | 380v / 220v / 415v / 440v | Certification: | ISO9001,CE ISO |
| Mesh Size: | 25 Mm-100 Mm | Usage: | Wire Mesh Weaving |
| Application: | For Making Chain Link Fence | ||
| High Light: | Rustproof Chain Link Fence Machine,Multiscene Chain Link Fence Machine,Double Diamond Wire Fence Machine |
||
Double Wire , 30mm , Diamond Hole Chain Link Fence Making Machine
Chain link fence machine is a wire mesh machine that crochets low carbon steel wire, stainless steel wire, aluminum alloy wire, PVC wire, and sprayed wire into chain link fence. The mesh has uniform meshes, smooth surface, and elegant appearance, The width of the net is adjustable, the thickness of the wire diameter is adjustable, it is not easy to be corroded, and the life is long,the weaving is simple, beautiful and practical.
Advantages of fully-automatic chain link fence machine:
1. PLC (programmable Logic Controller)
2. Manufacturing chain link fences of different sizes
3. Servo motor 5.5kw(output power 16.5kw)
4. Alarm device which can stop the machine automatically or remind operator of feeding the machine timely.
5. Additional shutdown device to stop the machine conveniently
6. Single die double spiral.
7. Sides of chain link fence can be twisted or knuckled as required.
Specification of our chain link fence machine:
| Model | Single Wire | Double Wire |
| Wire diameter | 1.3-4mm | 1.5-4mm |
| Mesh size | 20-100mm | 25-100mm |
| Mesh width | 0.5-4m | 0.5-4m |
| Speed | 70-80m²/h | 120-180m²/h |
| Mould Dies | 2 sets mould for free | |
| Mesh length | 30m, adjustable freely as your request | |
| Mesh side | Knuckled and twisted, or knuckle, or twisted | |
| Raw material | Galvanized wire, PVC coated wire, etc. | |
| Machine size | 4.2*2.2*1.7m | 6.7*1.43*1.8m |
| Weight | 2500kg | 4200kg |
| Operation | One person can operate two or three machines | |
After sales service:
1: Within guarantee time, if any components are broken under normal condition, we can change for free
2: Complete installation instructions, circuit diagram, manual operations and machine layout.
3: Guarantee time: one year since machine was at buyer's factory but within 18 months against B/L date.
4: We can send our best technician to buyer’s factory for installation, debugging and training.
5: Timely reply for your machine questions, 24 hours support service.

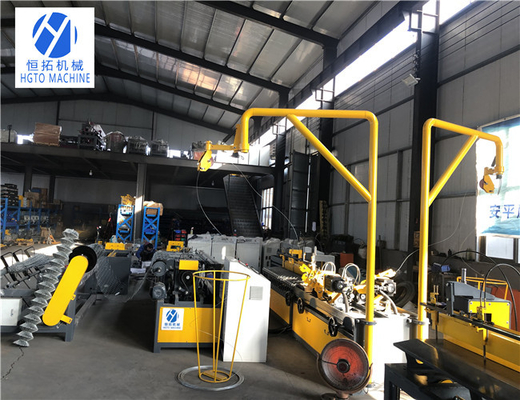

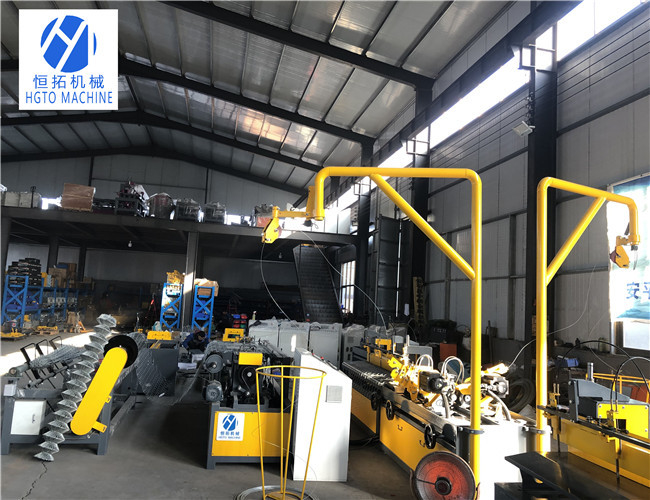

Main machine picture:
Finished mesh picture:
Customer Visiting Picture:
Factory Image:
